產品搜索

四虎影视免费永久大全-四虎8848精品成人免费网站-四虎视频国产精品免费入口-四虎4hu永久免费网站影院 > 產品中心 > 噴砂機系列噴砂機系列

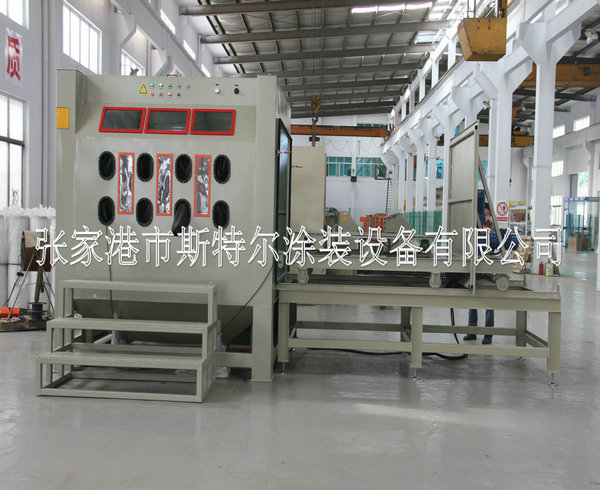

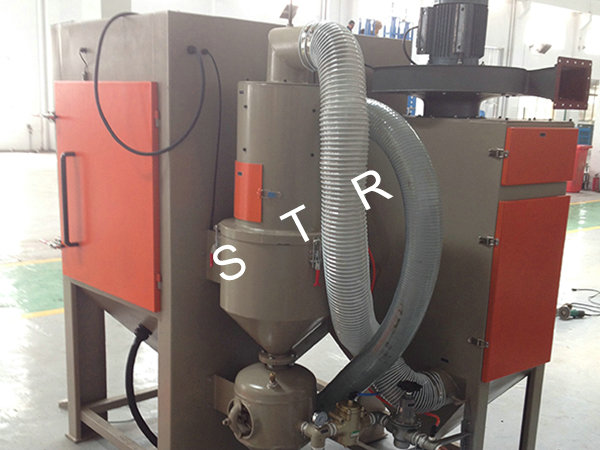

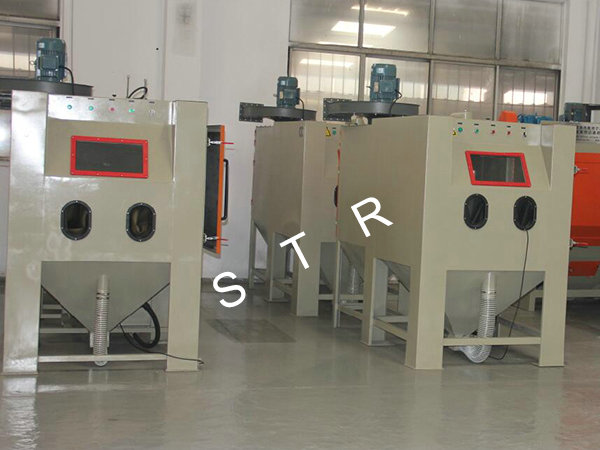

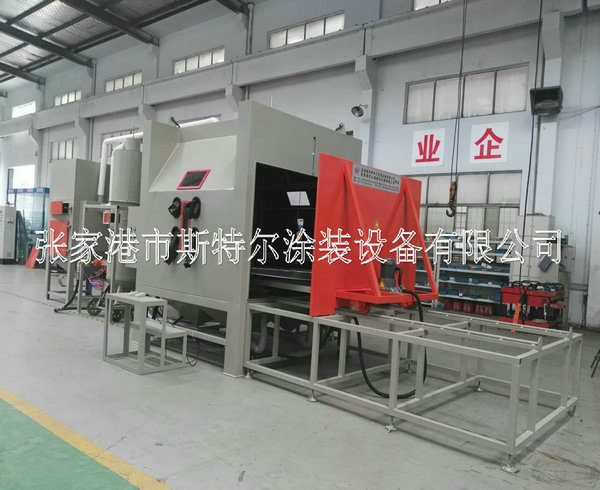

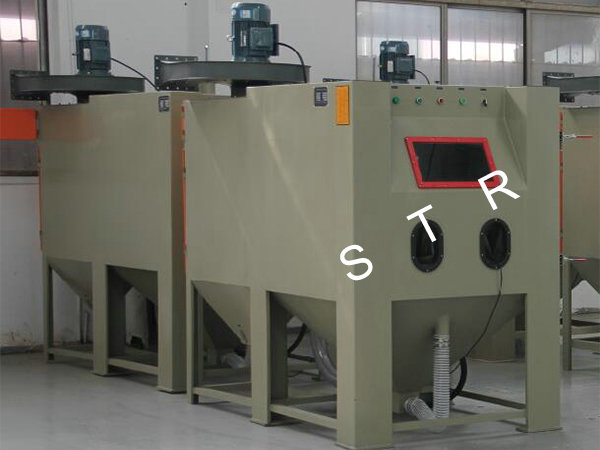

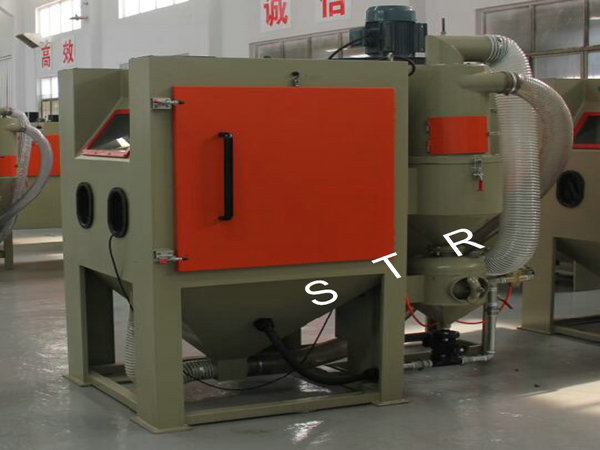

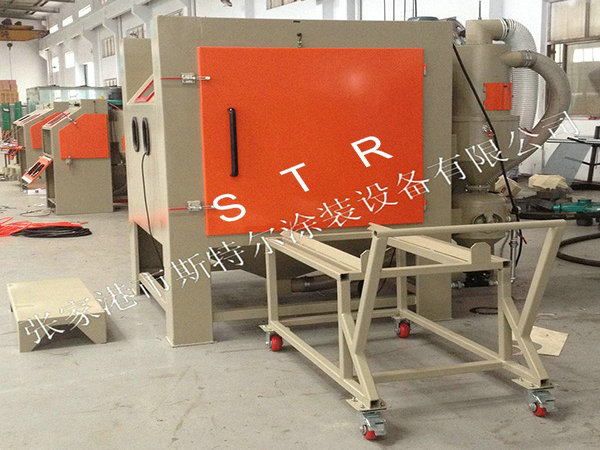

加壓箱式噴砂機系列

產品優缺點 Product features(請(qing)往前瀏(liu)覽(lan)網頁大點(dian)量的例子照片圖片供參(can)看)

噴砂機主要用于電鍍、噴漆、噴涂等所有被覆蓋加工前噴砂處理;舊樣翻新清洗;金屬制品及塑膠、水晶、玻璃等表面痕跡消除,啞光霧面處理,使產品表面提升檔次;機加工零件微小毛刺去除;增加金屬件表面硬度,消除應力如彈簧、機加工刀具等;金屬制品及非金屬制品表面刻蝕圖案、文字及防滑處理,如大理石、印章、手柄防滑等。本機應用范圍:適用于大量中小型一般工件及高硬度工件的快速噴砂。如發動機配件、閥門、熱處理工件等。該機型設計新穎,結構科學合理,操作方便,加工性能優越;噴砂速度快,撞擊點深。

Features: Sandblasting machine is mainly used in electroplating, paint, coating area to-be-covered before piating; Old way of refurbished cleaning; Metal products and plastic, crystal, glass surface trace eliminate scattered, dumb, surface process to enhance the grade of the product's surface; Machining parts tiny burrs purify; Increase the metal surface hardness, eliminate stress such as spring, mechanical cutters, etc.; Metal and non-metai products surface etching pattern, writing and prevent slippery processing, such as marble, seals, and handle prevent slippery, etc. The machine is applied the range: applicable to small and medium-sized general of workpiece and high hardness workpieces quickly sandblasting. Such as engine fittings, valves, heat treatment workpiece, etc. This machine has novel, scientific design and reasonable structure, convenient operation, processing superior performance; Gush arenaceous speed, the impact point at deep.

適用人群條件 Applicable scope

電子無線家具五金類(lei),ABS橡(xiang)膠,壓克力,模(mo)具加工。大型類(lei)件(jian)、構成(cheng)件(jian)、環氧樹脂等(deng)類(lei)件(jian)或新工藝(yi)擺件(jian)噴砂。

Applicable scope: electronic hardware class, ABS plastic, acrylic, resin, workpiece or handicraft sandblasting

常見科技參數值 Main technical parameters供考慮到底(di)與業務領域(yu)連系

POS機(ji)機(ji)型 Model

STR-9070

STR-9080

STR-1010

STR-1212

作業艙長寬(kuan)比(bi) Internal size(mm)

900×700×790

900×800×700

1000×1000×670

1180×1180×980

整套裝置寸尺(chi) Complete machine size(mm)

900×700×1780

950×850×1720

1000×1000×2100

1200×1200×2580

抑塵箱厚度 Dedust box sizes(mm)

600×600×1680

600×600×1680

600×600×1680

800×800×1780

電源開(kai)關 Power

220V 50Hz

220V 50Hz

220V 50Hz

220V 50Hz

系統照長明燈具燈 Machine floodlight

220V 20W 高效燈(deng)

220V 20W 節能(neng)環保燈(deng)

220V 20W 節約能源燈

220V 20W 低碳(tan)燈

分離法器(qi)電機馬達 Separator motor

220V 50Hz  0.55-3KW

220V 50Hz  0.55

220V 50Hz  0.55-3KW

220V 50Hz  0.55-3KW

剝離 器風口尺寸(cun) Separator air volume

8.5m3/min

8.5m3/min

8.5m3/min

8.5m3/min

收縮空(kong)氣當中源 Compressed air source

2-8bar(kg/cm2)

2-8bar(kg/cm2)

2-8bar(kg/cm2)

2-8bar(kg/cm2)

機器(qi)設(she)備承(cheng)重 Weight

380kg

380kg

400kg

380kg
